Hardwood FD30 Door Lining

Product Code

Product Code 201397

Price Promise

We wont be beaten on price!

Dispatch Time *
In Stock
Planning ahead? Save your order and we will email it over to you for you to easily place it at a later date


  • High Grade Materials Used In Construction
  • Intumescent Strip Sold Separately
  • Fire Resistant For Up To 30 Minutes
  • Fast Fitting - Just Cut To Size
  • Reduces Draughts Means Lower Energy Bills
  • Responsibly Sourced Timber
  • 10 Year Warranty

    10 Year Warranty

    This product is covered by a huge limited 10 year warranty, which will protect you in the unlikely event that you discover any manufacturing defects in the future - T&Cs apply.
  • Fast Delivery

    Fast Delivery

    This product is available for a faster delivery method if you need it urgently! You will be able to select "48hr Express Delivery" at the checkout and you goods will be with you within 48hrs - T&Cs Apply
  • European Oak Veneer

    European Oak Veneer

    These doors are constructed with the highest grade European Oak Veneer, sourced from sustainable forests, so you can be sure that you have made a responsible choice with your oak doors!
  • High Grade Materials

    High Grade Materials

    We always use the highest quality materials possible in the construction of our products, so you can be confident that you are getting the best value for money.
  • Natural Sustainable Materials

    Natural Sustainable Materials

    Constructed using the highest quality timber from a responsible source, resulting in a quality product without compromising on sustainability.

Need some help?

Do you have a question about the Hardwood FD30 Door Lining, or need some help? You can contact the team who will be happy to help.

Product Information

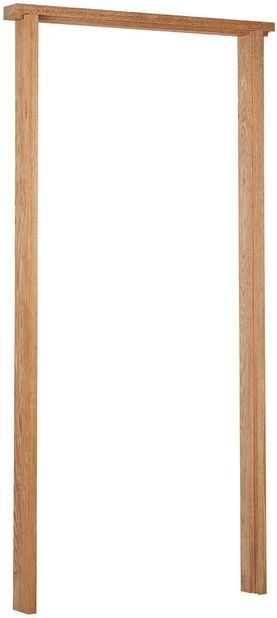

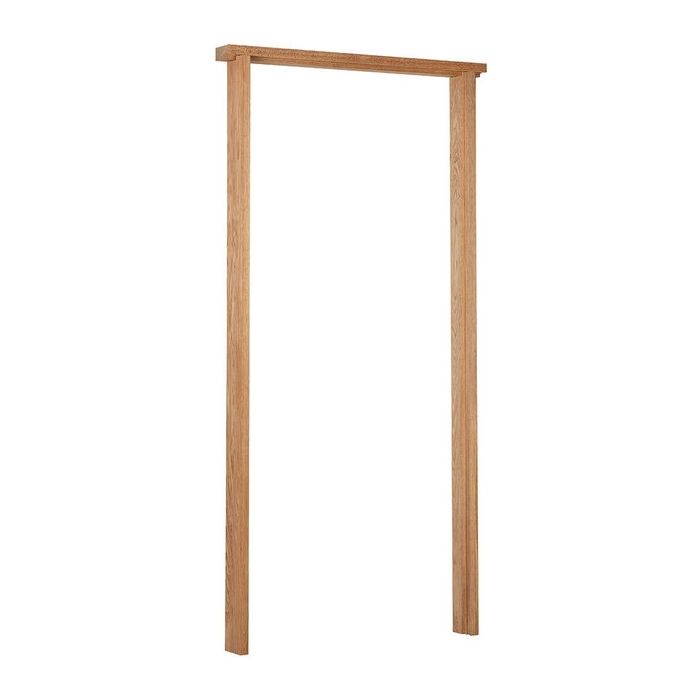

Specially designed, tested and certified this engineered hardwood FD30 rated door lining is the perfect companion to any oak fire door. The frame is made to accept fire doors of up to 32mm thickness and contains a pre-cut grooves to install a intumescent strip depending on the requirements your fire door needs to meet. The door jambs are loose and measure 62mm on the 108mm lining set and 87mm on the 133mm lining set.

Available in two widths 108mm and 133mm with a total thickness of 32mm with an adjustable top bar to accommodate doors from 27 inches (686 mm) to 33 inches (838mm). The maximum door height this frame can accommodate is 2010mm, just trim the frame to the required height.

This lining set does not include the intumescent strips, these can be found here and you will require 5 metres per door lining. The pre-cut groves measure 20mm wide by 4mm deep so please check the measurements of the intumescent your using to ensure a good fit.

The lining set is supplied unfinished and pre-sanded ready for finishing and installation.

View Full Description


Delivery Information

Technical Specification

Wood TypeMeranti
Width108mm, 133mm
UsageInternal Use
Fire RatingFD30
